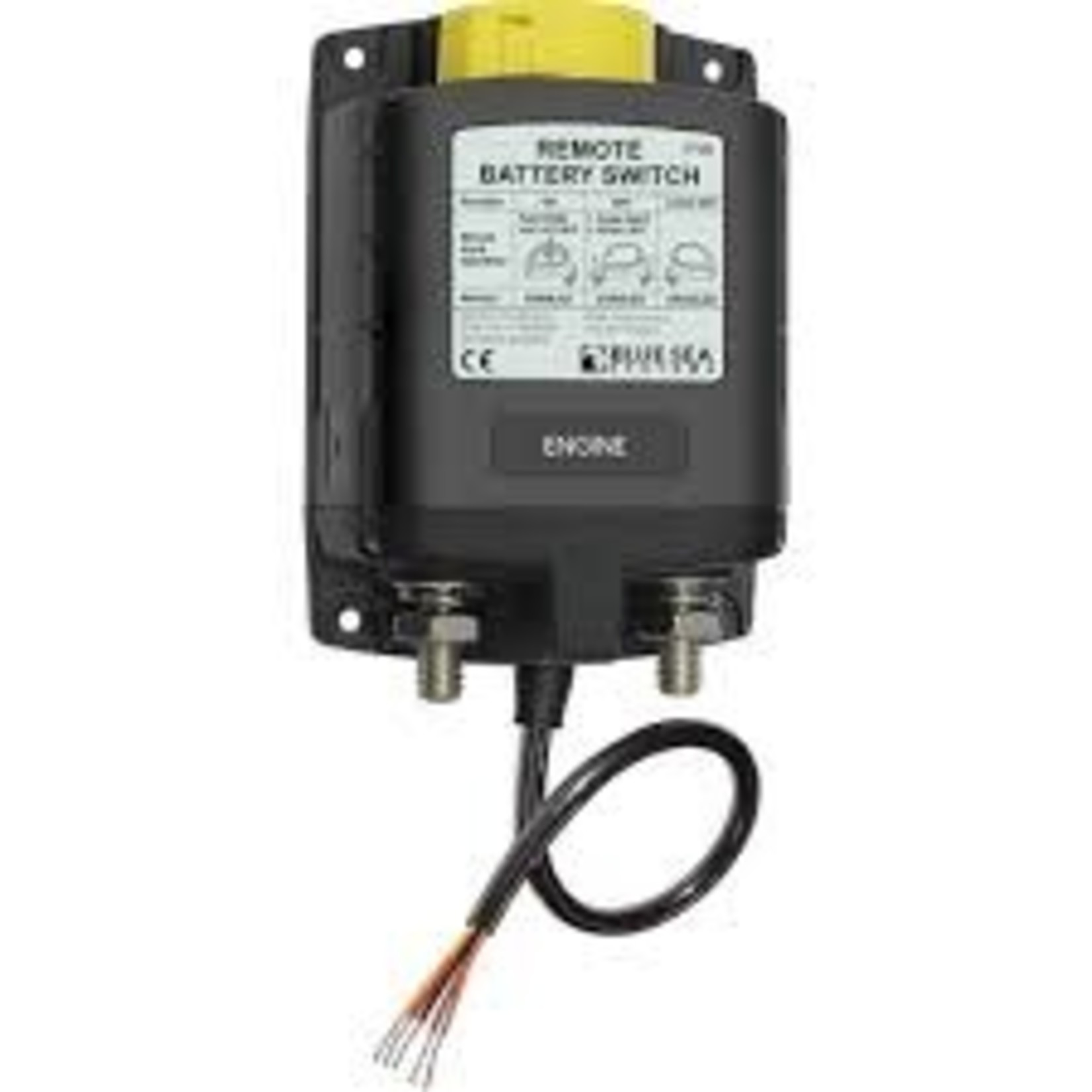

Allows high amp switching under load from remote
locations or manually, eliminating long cable runs. Includes
remote control switch # 2145 with lockout slide to prevent
accidental switching. 12V DC coil controls circuits up to
32V DC and is rated for 500 amps continuous duty and
2500 cranking amps (10 sec.) to handle even large diesel
engines. Magnetic latch only draws current when changing
the state of switch: it draws no current in the "ON" or "OFF"
" Tin plated copper studs.
states. 3
/8
